Precision CNC Milling

Our milling department is engineered for versatility. From complex 5-axis simultaneous machining of aerospace components to the heavy-duty removal of hard metals like titanium and Inconel, we have the right machine for every geometry. By combining advanced multi-axis capabilities with rigid CAT-50 vertical centers, L.F. Industries, Inc. delivers tight-tolerance precision across a wide range of materials and part sizes.

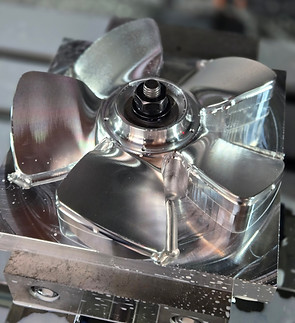

Simultaneous 5-axis CNC machining of complex aluminum impeller for aerospace

Complex Contours

Featuring the Hurco VMX42SRTi, our 5-axis capabilities allow us to machine complex geometries and compound angles in a single setup. This reduces handling errors, improves positional accuracy, and significantly shortens lead times for intricate aerospace parts.

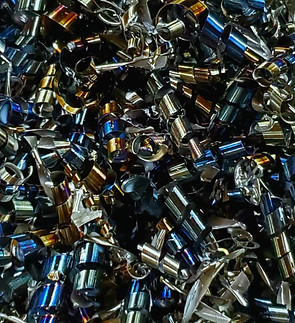

High-speed machining chips and swarf indicating efficient material removal rates

Hard Metal Ready (CAT 50)

Unlike standard job shops, we utilize CAT 50 taper machines (Awea & Takasawa) designed for high-torque, heavy material removal. This rigidity is essential for maintaining precision when machining tough alloys like Titanium, Stainless Steel, and Inconel.

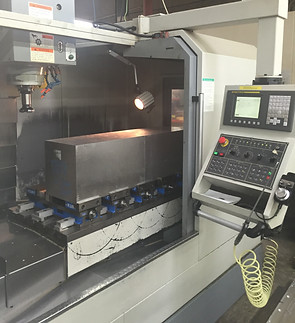

Heavy-duty vertical CNC milling of large raw material block using rigid multi-vise workholding

Extended Envelope

We handle more than just small brackets. With X-axis travels up to 47 inches (1200mm) on our Awea BM-1200, we can accommodate large structural components, base plates, and fixtures without multiple setups or repositions.

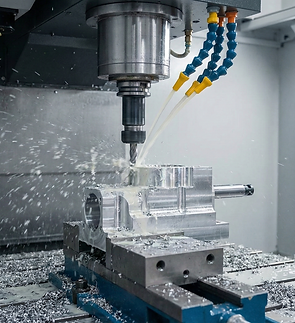

High-speed CNC aluminum machining with flood coolant and custom pneumatic production fixturing

Efficiency & Speed

For aluminum, plastics, and lighter components, our fleet of CAT 40 vertical centers (Kia & Yamaseiki) provides high-speed spindle performance and rapid tool changes, ensuring cost-effective production for general machining projects.

Milling Specifications & Capacities

5-Axis Capabilities

Machine: Hurco VMX42SRTi
- Work Envelope: 42" (X) x 24" (Y) x 24" (Z)
- Rotary: 600mm Flush-Mounted C-Axis Rotary Table
- Features: B-Axis Swivel Head, WinMax Control, 40-Tool ATC

Heavy-Duty Vertical Milling (CAT 50)

Primary Machine: Awea BM-1200
- Tool Capacity: 25-Tool Side Mount ATC
- Max Travel: ~47" (X-Axis)

Secondary Machine: Takasawa MacV5
- Tool Capacity: 20-Tool ATC

General Purpose Milling (CAT 40)

Machines: Kia VX400, Yamaseiki BM-850
Capacity: 25-Tool Automatic Tool Changers
Max X-Axis Travel: ~33.5 inches (850mm)
Application: Ideal for Aluminum, Plastics, and high-speed drilling/tapping operations.

Need Precision Machining?

From prototype to production, our diverse milling department ensures we match your part to the most efficient machine. Upload your CAD files today for a competitive quote on your next project.
